Self Luminous Photoluminescent Exit Path Markings For Hospital Egress Sidewall Guide
| Place of Origin | Anhui, China |
|---|---|
| Brand Name | Securun, Angran |
| Certification | ISO9001, SGS, CCC |
| Model Number | ART-004 |
| Minimum Order Quantity | 10 meters |
| Price | Negotiation |
| Packaging Details | 2.4m/pc, 10 pcs/ Cardboard, 4 cardboard/bundle |
| Delivery Time | 7-10 working days |
| Payment Terms | T/T, L/C at sight, Western Union |
| Supply Ability | 20000 meters per month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Aluminum | Thick | 2.8 Mm |
|---|---|---|---|
| Color | Silver, Or Custom | Glowing Color | Yellow-green, Or Custom |
| Glowing Time | 8 Hours，10 Years Cyclic Self-luminous; | Product Size | 50*8 Mm |
| Cutable Length | 60cm, 90cm, 1.2m, 1.5m,1.8m, 2m ; Or Custom Length ≤2.4m | Installation | Self-adhesive Or Stapling |
| Feature | Self-luminous, No Electricity Need | Application | School, House, Hospital, Office Building, Factory, Industrial Park, Subway, Etc. |
| High Light | Hospital Photoluminescent Exit Path Markings,Sidewall Photoluminescent Exit Path Markings,Self luminous egress |
||
Product Description

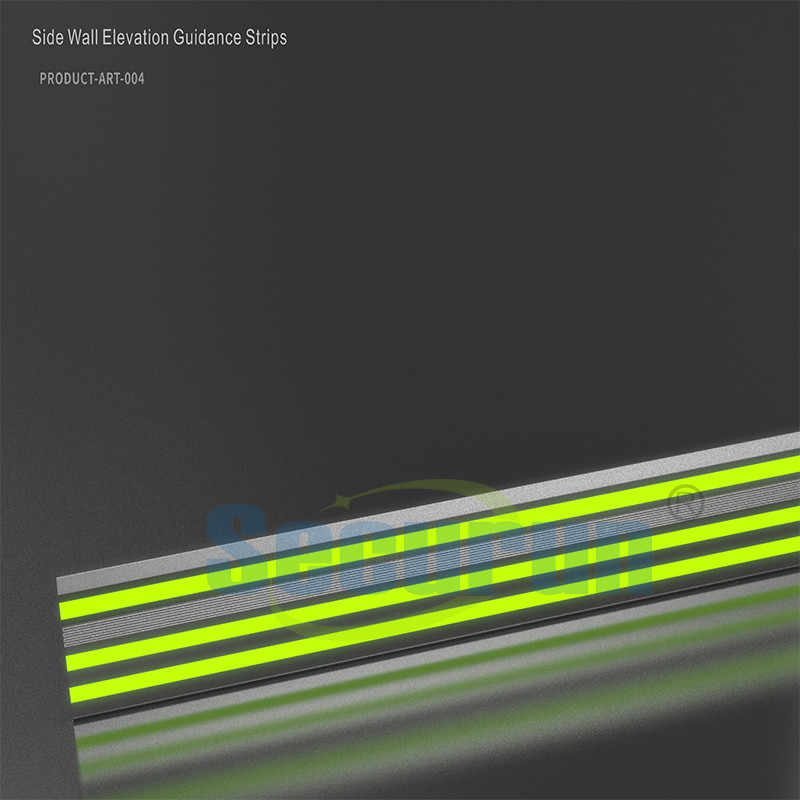

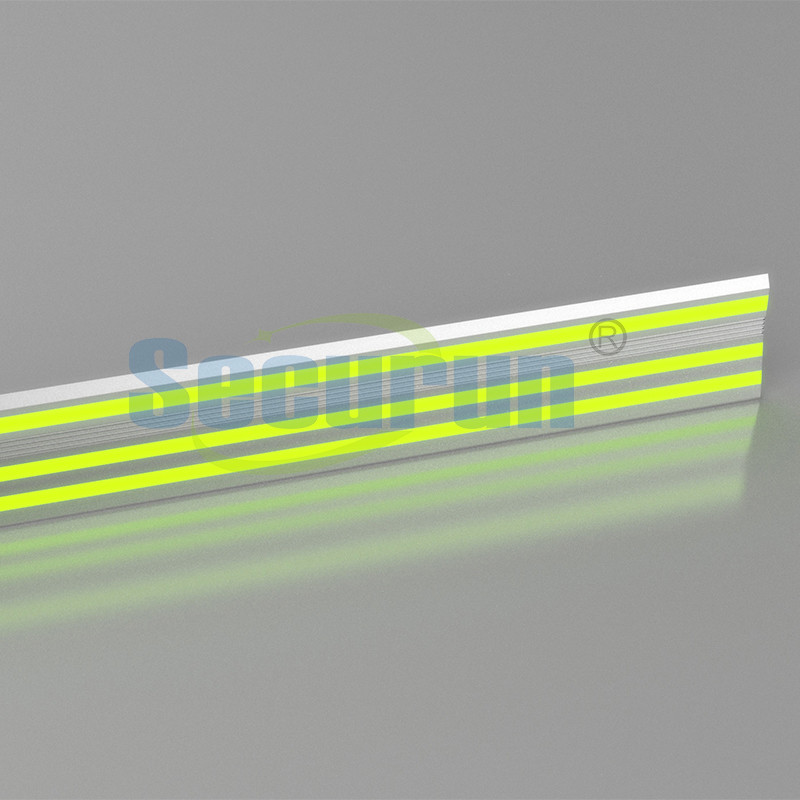

Aluminum Self-luminou Sidewall Guide Marking
• Sidewall Guide Marking Instruction
Aluminum Sidewall Guide Marking Glow In The Dark provides sidewall high visibility and enhances egress speed in dark or light conditions. They can be used on a range of substrates required by code to have luminous path markings including concrete, timber, tiles, steel, checker plate and thin carpeted stairs. It has a hard-wearing photoluminescent strip that is of high performance and standard performance, respectively.
• Sidewall Guide Marking Description
| Product Name | Aluminum Sidewall Guide Marking Glow In The Dark |
| Size | 50mm * 8mm |
| Thickness | 2.8 mm |
| Weight | 416g per meter |
| Surface color |
Standard color: Silver; Custom color: Black, Light Bronze or Dark Bronze Anodize finish are available at an additional cost. |
| Glowing Color | Yellow-green, Blue-white or custom |
| Length |
Available in cut to any length sizes. (Tolerance +or 2mm) Standard lengths are 60cm, 90cm, 1m, 1.2m, 1.5m, 1.8m, 2m. Max length≤2.8m |
| Brightness (mcd/㎡) | Initial: 29600; 480 minutes: 23; |
| Afterglow time | ≥8hours,10 years cyclic self-luminous; |
• Sidewall Guide Marking Feature
* Environmentally Friendly
* Non-radioactive and Non-toxic
* No electric wires or batteries
* Recyclable: No disposable cost
* High visibility in dark or light conditions.
* Washable, easy cleaning, No maintenance.
* Does not burn.
* Self-rechargeable, circularly self-luminous.
• Sidewall Guide Marking Images
• Application
• Installation
They can be used on a range of substrates required by code to have luminous path markings including concrete, timber, tiles, steel, checker plate and thin carpeted stairs.
| Screw Installation | Glue Installation |
|
|
• FAQ
Q: Are you a factory or trading company?
A: We are a factory nearby Shanghai, product all kinds of photoluminescent products, skilled technician and workers, and fully-automatic production lines, shall ensure you high quality products and prompt delivery.
Q: What's the transportation?
A: By Air, by Sea, or by Courier(DHL, UPS, FedEx, TNT, etc...), based on your requirements.
Q: Can we do it as our design?
A: Of course, OEM and ODM are both avilable, but the mold costs should be bear by the buyer.
Q: What’s your MOQ?
A: 10m is also OK, but the more quantities, more competitive price.
Q: How about the delivery?
A: Normally 7-10 working days, based on your request.
